Our shift boxes are designed to simplify manual shifting of your auto DSM

  The Shift Box DSM-PLUS2 is a simple to use automatic transmission handheld shift box designed for automatic DSM’s. Our shift boxes are compatible with all 89-99 vehicles utilizing an F4A32, F4A33, W4A32, and W4A33 automatic transmission. This programmable low cost option is designed for those who don’t need all the fancy features of our SMART Shift Box's, but still want the same great quality our products all have. This Shift Box is programmable for automatic up-shifts. This allows you to set the RPM or MPH for each gear change which is a useful feature for drag racing. This shift box includes our exclusive down shift protection to prevent the user from accidentally down shifting when the engine revs are above a user adjustable RPM. This shift box will beep to let you know when a shift was blocked if over your configured down-shift protection RPM. Available with a red or blue LED .7" dot matrix display, high quality up shift and down shift buttons, easy to wire, works with your TCU or as a full standalone, and has inputs for external shifters. You can even switch between your TCU and this shift box without going into limp mode using the optional TCU package, OR use as a full standalone transmission shifter. This shift box is a handheld device with all components contained in the very small handheld device. Shift box includes a wiring harness with plug for easy removal.

Our innovative features may have been copied by our competitors, but we still offer a better working, higher quality product with features they can't provide no matter how much they attempt to copy, all with excellent support at an awesome price.

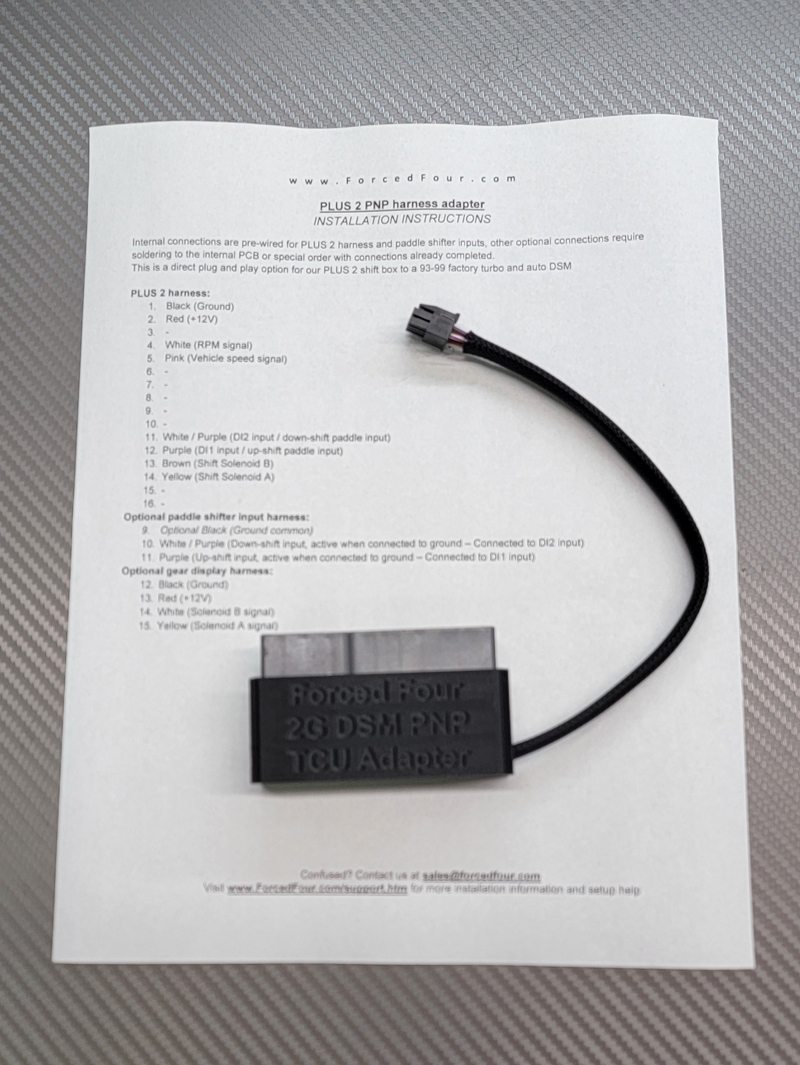

Optional TCU package includes a toggle switch with wiring harness and TCU signal diodes, only necessary if you plan to use with a TCU in the car.

Compare our Shift Boxes HERE!

The Shift Box DSM-PLUS2 includes the following features:

• Stylish billet machined black handheld plastic enclosure only 5/8" thick
• Simple to program with easy to read large led dot matrix display with scrolling text
• Programmable RPM based up-shifts independent for each gear change
  1-2 up-shift is user adjustable in 100RPM increments from 5000RPM to 12,000RPM
  2-3 up-shift is user adjustable in 100RPM increments from 5000RPM to 12,000RPM
  3-4 up-shift is user adjustable in 100RPM increments from 5000RPM to 12,000RPM
• Programmable MPH based up-shifts independent for each gear change
  1-2 up-shift is user adjustable in 1MPH increments from 30-70MPH
  2-3 up-shift is user adjustable in 1MPH increments from 50-100MPH
  3-4 up-shift is user adjustable in 1MPH increments from 70-200MPH
• User configurable down-shift protection
  User configurable in 500RPM increments from OFF, and 3500RPM to 7000RPM
• Overdrive off feature with LED indicator to prevent up-shifts to 4th gear
• User configurable display brightness
• Powerful MOSFET's for even faster shifts with less voltage drop producing less heat
• Improved RPM measurement circuit for more accurate shifts and easier installation
• Full line pressure shifts
• Red or blue LED dot matrix 0.7" display
• Powered by a powerful high quality PIC® Microcontroller
• High quality shift buttons
• Audio alerts when down-shifts are blocked
  User configurable enabled or disabled
• External shift inputs (paddles, slap shifter, push buttons, etc)
  Simply ground the up or down shift wire to complete the shift
• Switch between TCU or shift box control on the fly with optional TCU package
• Can be used with a TCU or on it's own as a standalone transmission controller
• Wiring harness with plug in connection
• Limited 1 year warranty

Disclaimer: Forced Four, and the employees of Forced Four are not responsible for any damage or personal injury caused by the misuse, improper installation, product glitches, or product failures.  By installing this product and using this product, you are agreeing to this disclaimer. Forced Four will stand behind the quality of our products, and will try to correct any issues you may have while using this product, but are in no way liable for what this product may do.

Added to catalog on 4/12/18
